Edges stay guided
Both vertical fabric edges travel inside side channels instead of hanging unsupported.

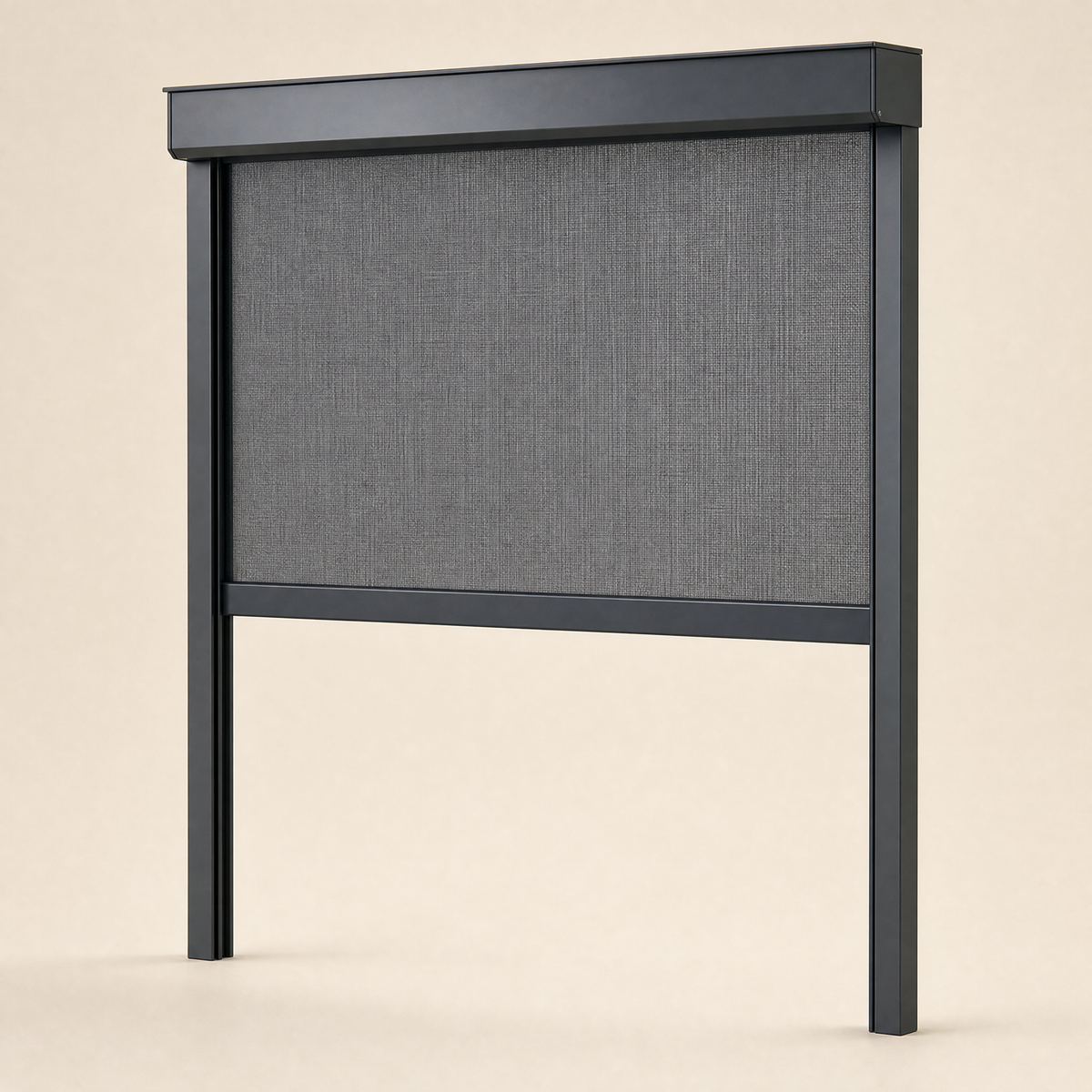

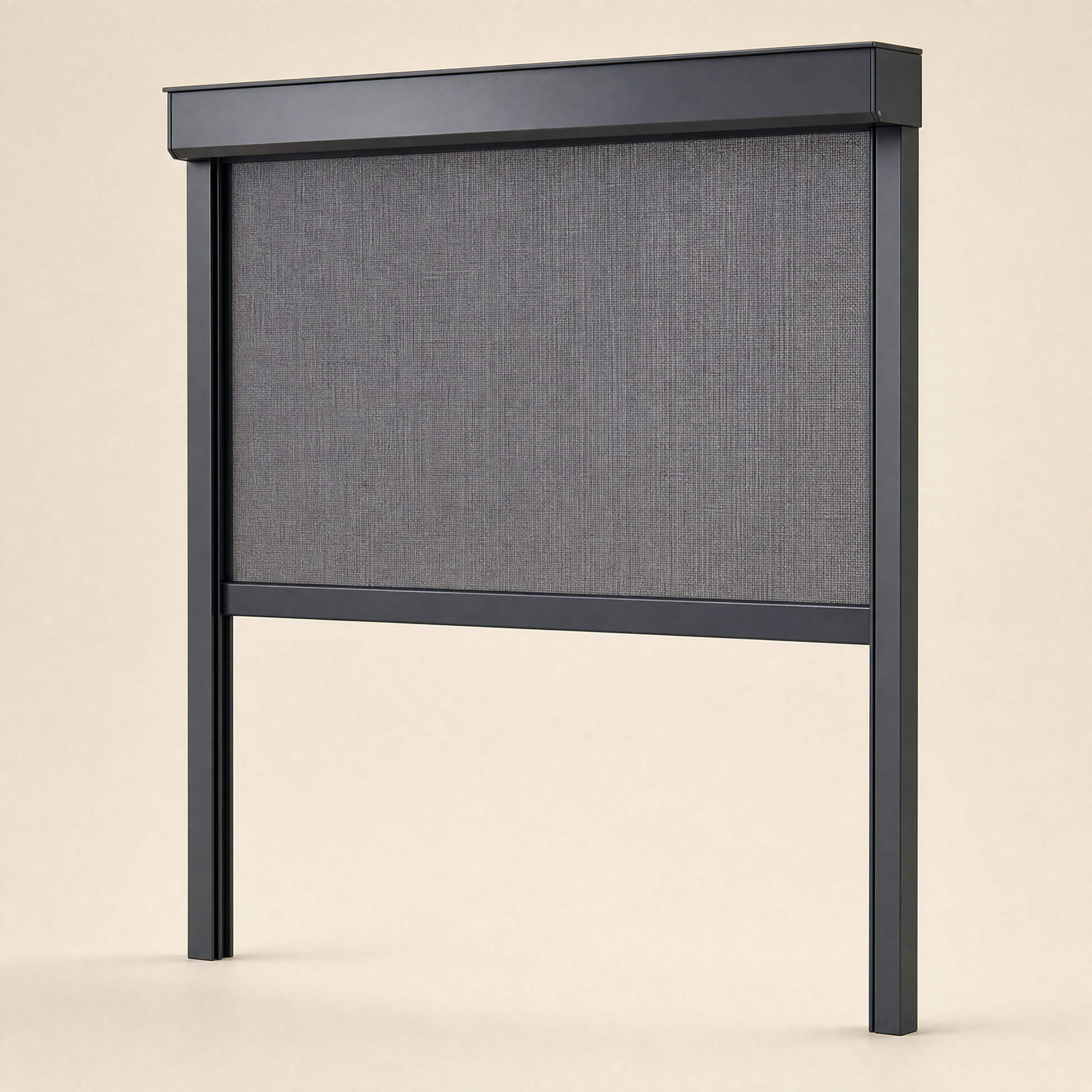

BESITSOL Motorized Windproof Roller Shade
Close exposed patios, balconies and pergola sides with a motorized screen guided along both vertical edges.
Create a more controlled outdoor enclosure with a motorized screen whose fabric edges travel inside vertical side channels. The system is planned around patios, balconies, pergola sides, hospitality terraces and commercial openings.
- Wind resistance: up to 123 mph, subject to finished size, fixing surface and installation.
- Frame: powder-coated 6063-T5 aluminum with guided side channels and reinforced bottom rail.
- System sizes: 108 mm cassette for widths from 0.7-4 m and heights up to 3 m; 130 mm cassette for widths from 0.7-6 m and heights up to 5.6 m.
- Motor: 20 Nm quiet tubular motor with remote-control options and a 2-year warranty.
- Fabric: solar screen, 3%/5% openness, blackout, clear TPU and imported PES directions, with a 10-year fabric colorfastness statement.
Share approximate dimensions, quantity, intended use, delivery destination and a site photo. BESITSOL will review the cassette, fabric, mounting method and final production dimensions before quotation.
Configured product priceSelect width, height and fabricYour configured price will appear here.Price excludes tax, shipping and installation. Final production dimensions remain subject to project review.
Wind resistance and operating limits
Wind resistance and operating limits
Wind resistance is rated up to 123 mph. Actual performance depends on finished size, mounting surface, fixing method and installation quality; final configuration is reviewed for the project.
Fabric options
Fabric options
Available directions include 3% openness, 5%/10%/30% solar screen, blackout, 0.8 mm clear TPU and imported Sauleda PES screen. Final fabric is selected around shade, privacy, visibility and project use.
Will it fit my opening?
Will it fit my opening?
Share approximate width, height, mounting surface and a site photo. BESITSOL will review inside, outside, column-supported or coordinated multi-bay installation before production.

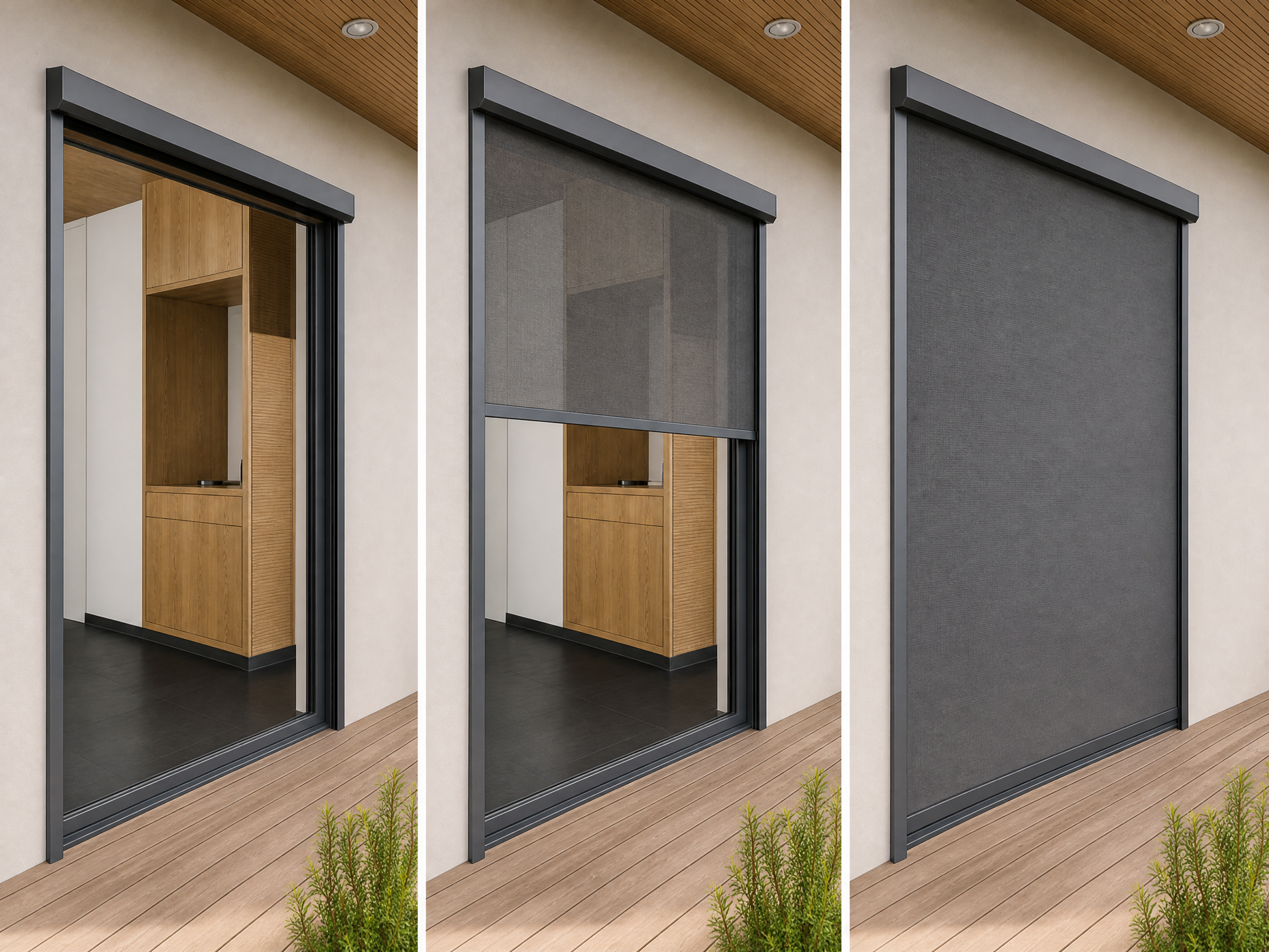

Guided motorized screening
Close the side. Keep the space flexible.
Lower the screen when sun, privacy or exposure interrupts the space. Raise it again when an open view is preferred.
BalconyPatioPergolaHospitality
Get a project quote
Why the guided design matters
More controlled than a free-hanging screen.
The screen edges move inside vertical channels while the motor adjusts coverage. The complete layout is then planned around the opening and fixing surface.
Open or close on demand
Motorized movement adjusts vertical coverage as sunlight, privacy and space use change.
Select the visual result
Choose the desired balance of shade, privacy and outward visibility during project review.
Planned around the site
Opening dimensions, fixing surface, installation direction and finish are reviewed together.
System details
The parts that keep the screen controlled.
A protected cassette, guided fabric edges and a reinforced bottom rail work together as one complete exterior screen system.
01
Guided bottom rail
The reinforced bottom member travels with the screen while both fabric edges remain captured inside the side channels.
02
Filtered outdoor view
Screen fabrics soften glare and exposure without automatically turning the opening into a solid visual barrier.
03
Protected upper cassette
The motor and rolled fabric sit inside the upper cassette, coordinated with the vertical guides at each side.

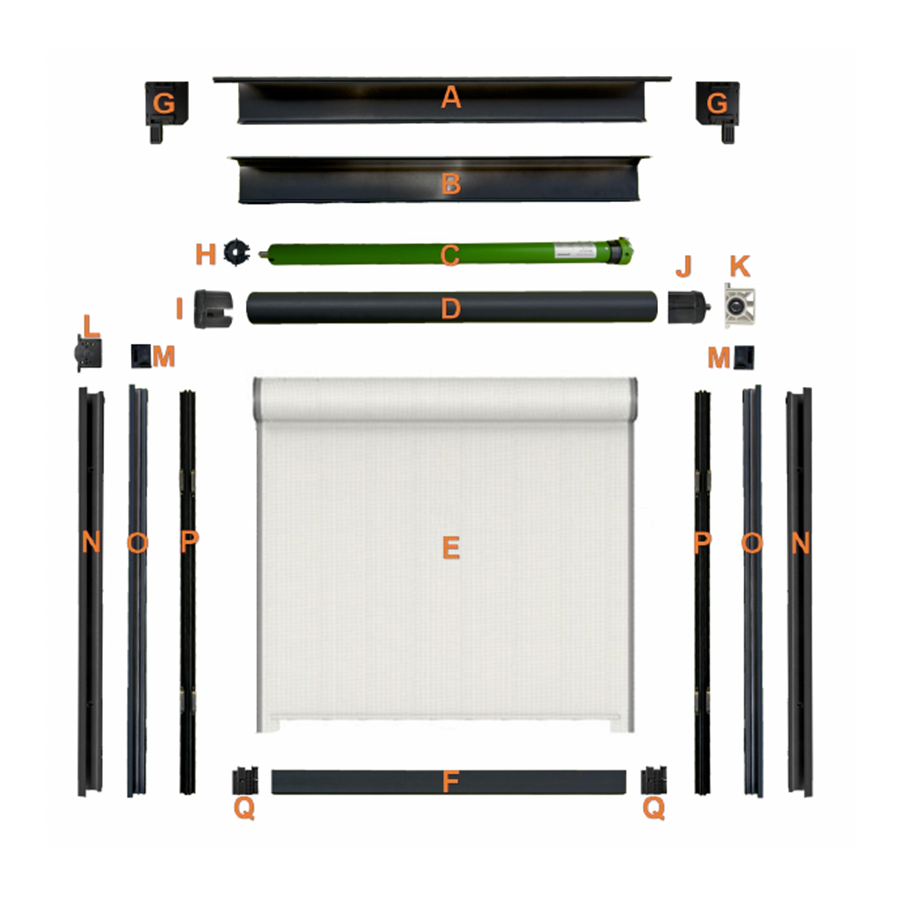

Profiles & components
Built as a complete guided-screen system.
The visible aluminum profiles are only part of the assembly. Motor, roller tube, zip edge, guide inserts, spring strips, end caps and the moving bottom rail are coordinated around the finished opening.
Cassette shell
Upper and lower aluminum covers protect the rolled fabric and internal drive while allowing planned service access.
Tubular motor
The motor sits inside the roller tube so the drive remains contained within the headbox.
Roller tube
Supports the fabric across the opening and rotates with the motor to raise or lower the screen evenly.
Side-guide assembly
Outer rail, upper guide and spring strip work with the zip edge to keep both fabric sides captured as the screen moves.
Bottom rail & end caps
The reinforced moving rail spans the lower edge; matched end components guide its travel inside both side channels.
Ends, covers & fixings
Side covers, rail caps and internal fasteners finish the enclosure and protect connection points.

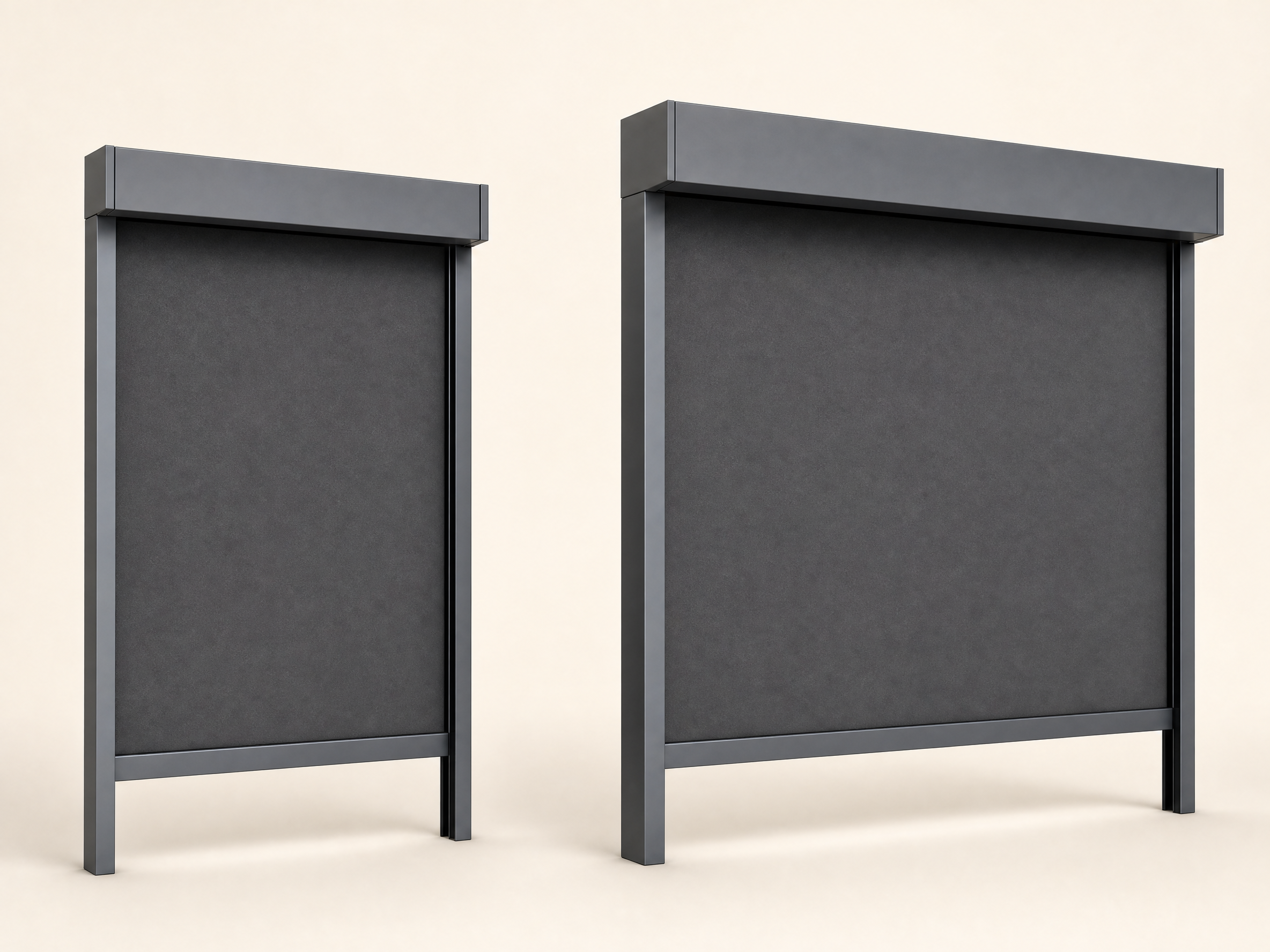

01 / COMPACT HEADBOX
108 mm cassette
A compact 108 x 108 mm aluminum enclosure for reviewed openings where a smaller architectural headbox is preferred.
Profile wall reference: 2.0 mm. Final selection depends on finished size and site conditions.
02 / LARGE HEADBOX
130 mm cassette
A larger 130 x 130 mm enclosure used when the reviewed screen size, roller package or project layout requires more internal capacity.
Profile wall reference: 2.0 mm. Larger size does not by itself confirm the final wind rating.
03 / MOVING EDGE
Reinforced bottom rail
The 30 x 70 mm aluminum rail closes the moving edge, accepts matched internal components and travels within the side-guide system.
Profile wall reference: 1.0 mm. Internal configuration and ballast vary with the project.
Why the assembly matters
Profile size, roller tube, motor, fabric, guide insert and fixing method must be reviewed together. Replacing one item with a visually similar part can change travel clearance, fabric alignment and wind performance.

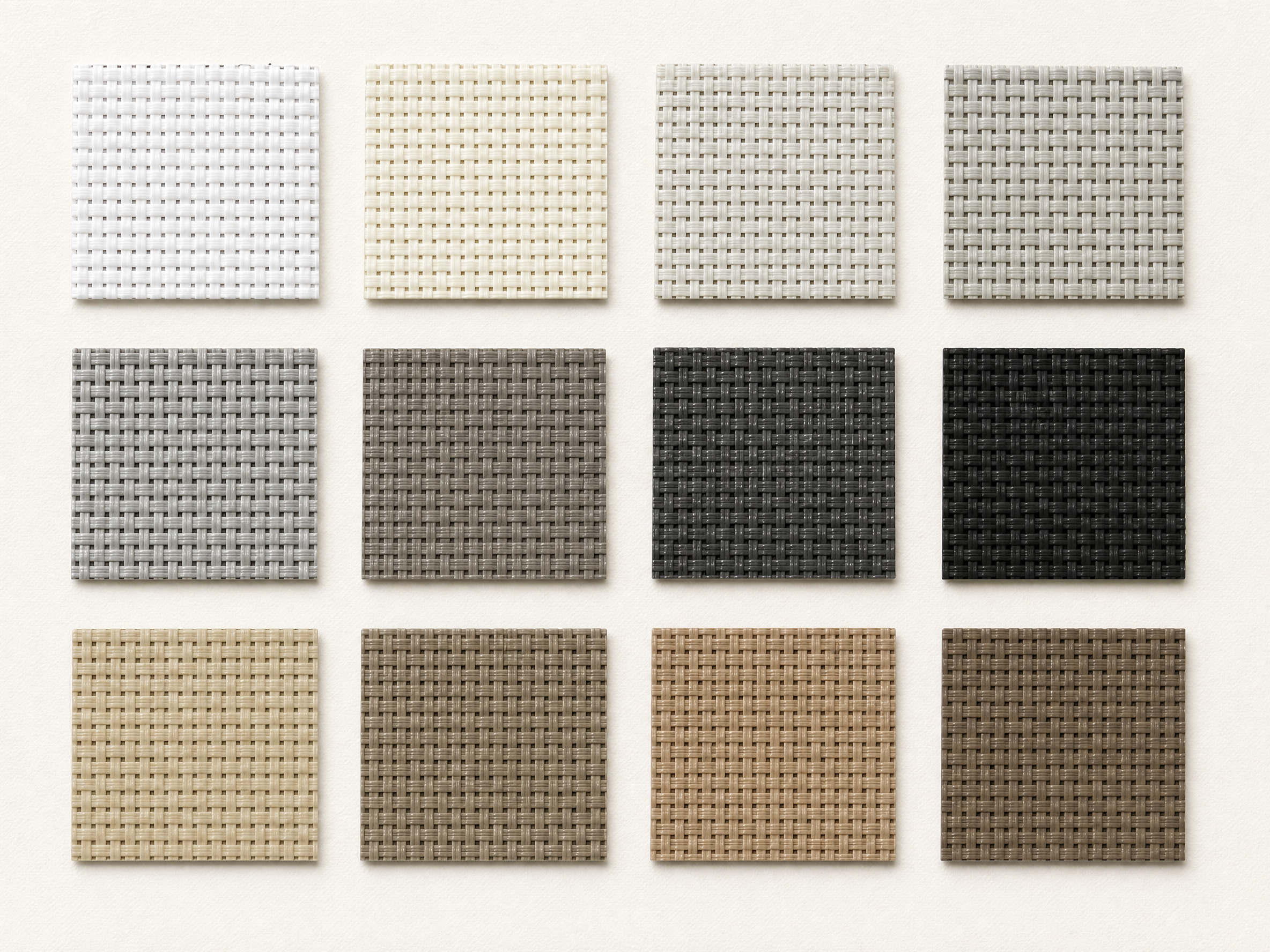

Fabric directions
Choose the balance of shade, privacy and view.
Fabric openness changes how much light, airflow and outward visibility the screen retains. Start with the intended use, then confirm the exact material and color during project review.
Colors and weave shown online are indicative. Confirm the final fabric sample during project review.

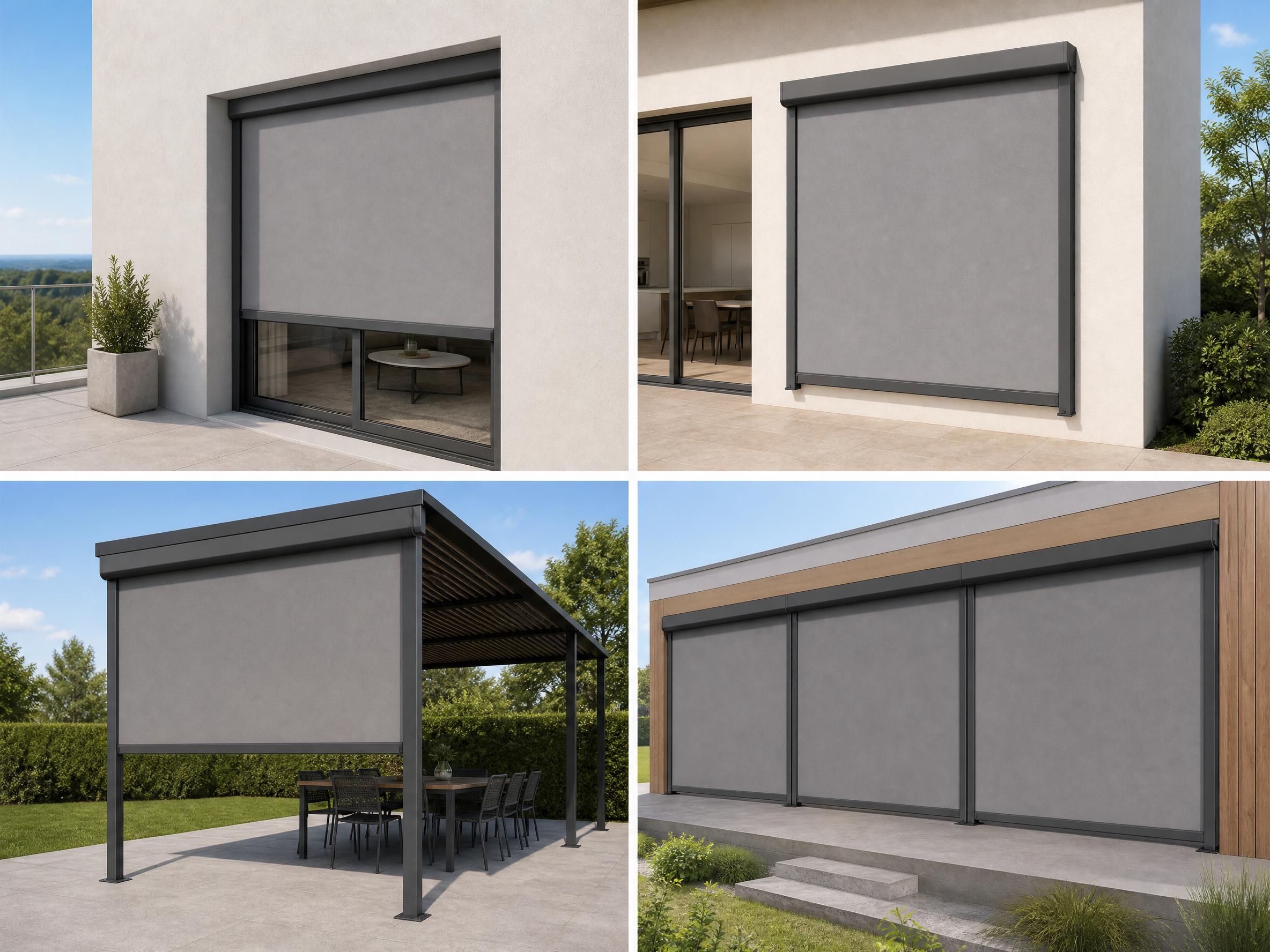

Installation approaches
Inside mount, outside mount, or structural integration.
The best approach depends on recess depth, fixing strength, service access and the way the opening meets the surrounding structure.
Inside mount
Recess the cassette and side guides within a prepared opening for a cleaner, more integrated facade line.
Outside mount
Fix the system to the face around the opening when recess depth is limited or broader edge coverage is preferred.
Column supported
Integrate the screen with pergola posts or a dedicated frame where no continuous wall opening is available.
Multi-bay layout
Coordinate several screens across a larger opening, with cassette, fixing and control positions reviewed together.
Made for real outdoor spaces
From private balconies to hospitality terraces.
Use the screen where adjustable vertical coverage helps manage sun, privacy and changing use throughout the day.

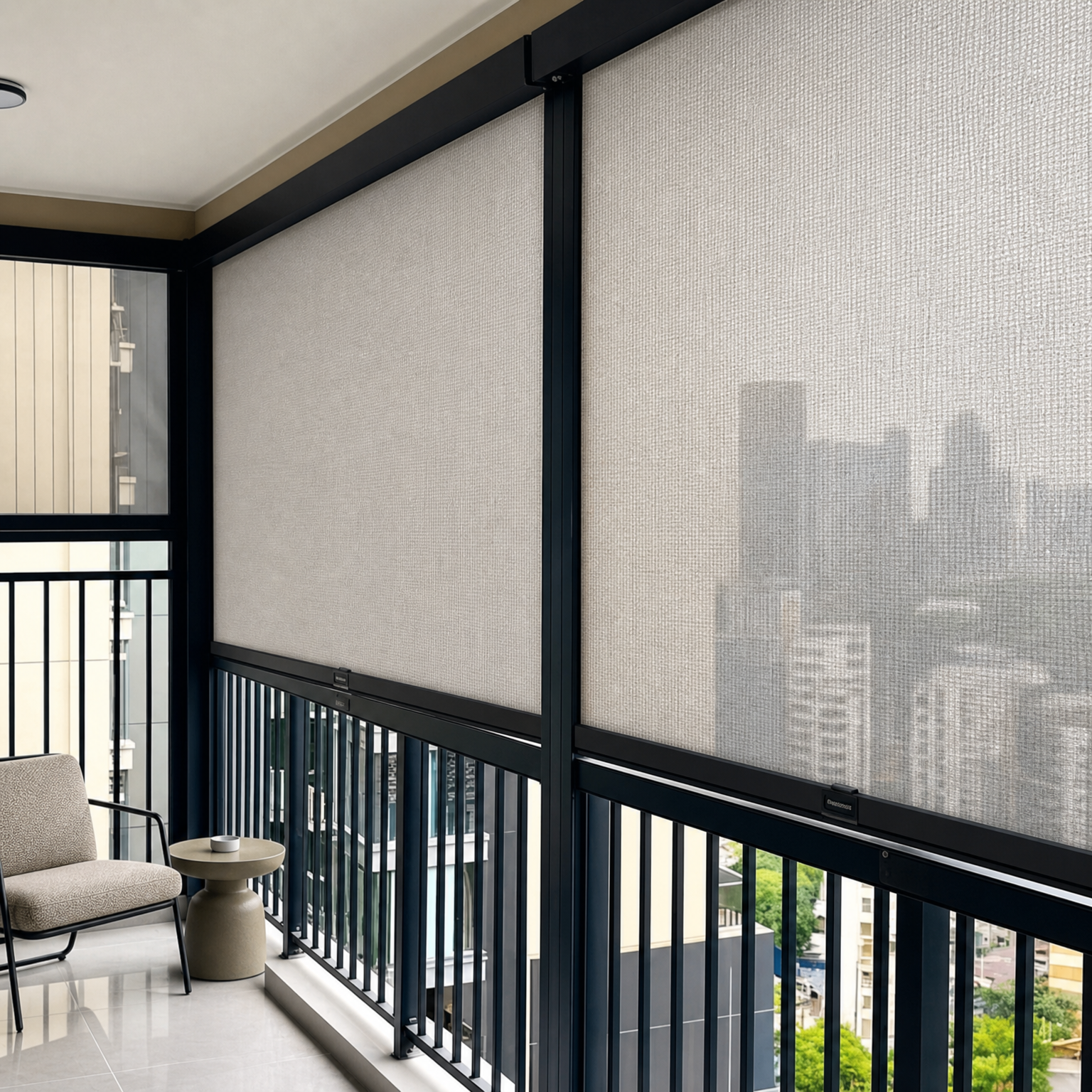

Balcony
Flexible screening for elevated outdoor spaces
Add adjustable shade and privacy where exposed balconies need a cleaner edge-to-edge solution.

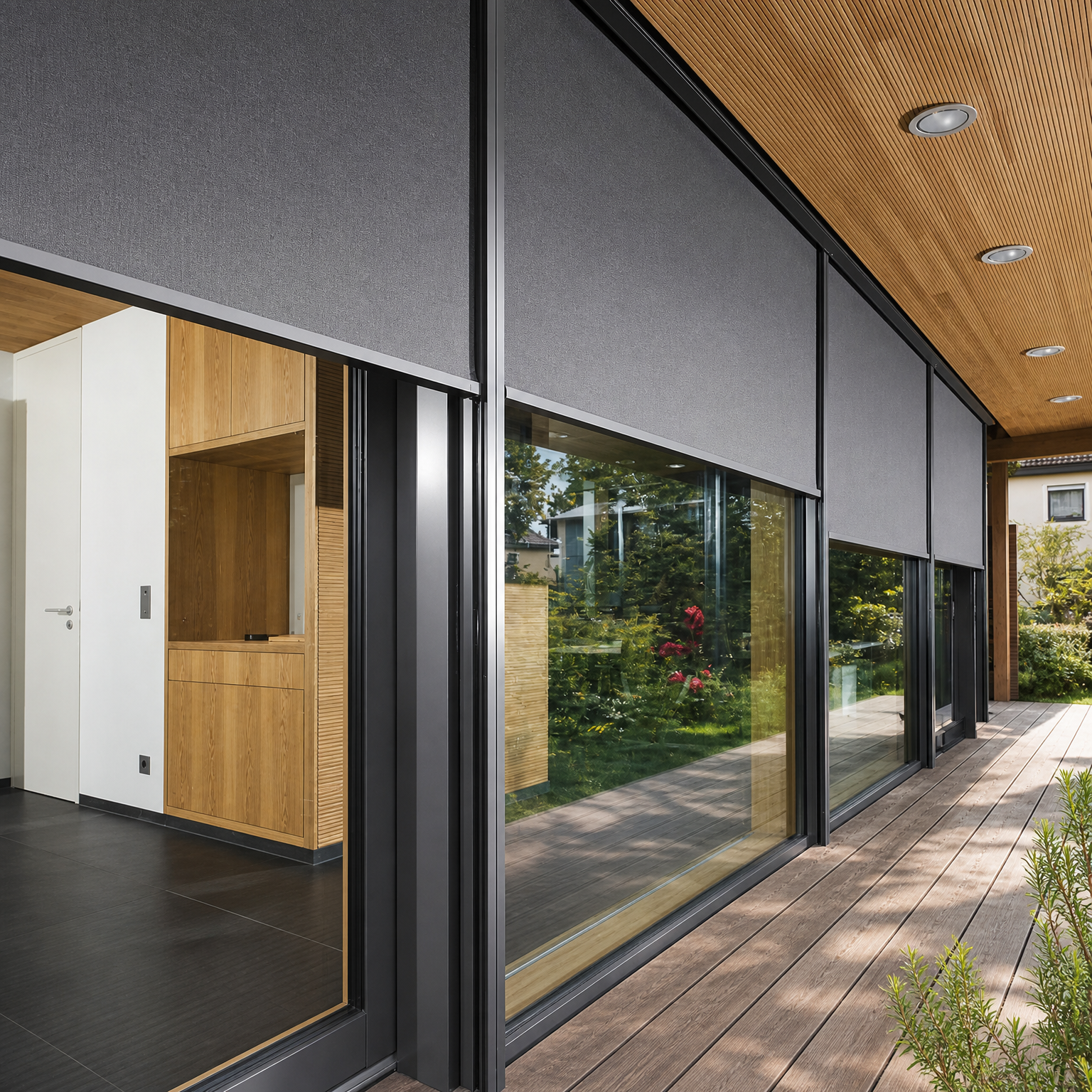

Residential
Coordinate several openings in one architectural language
Repeat the same guided screen system across doors, windows and covered walkways.

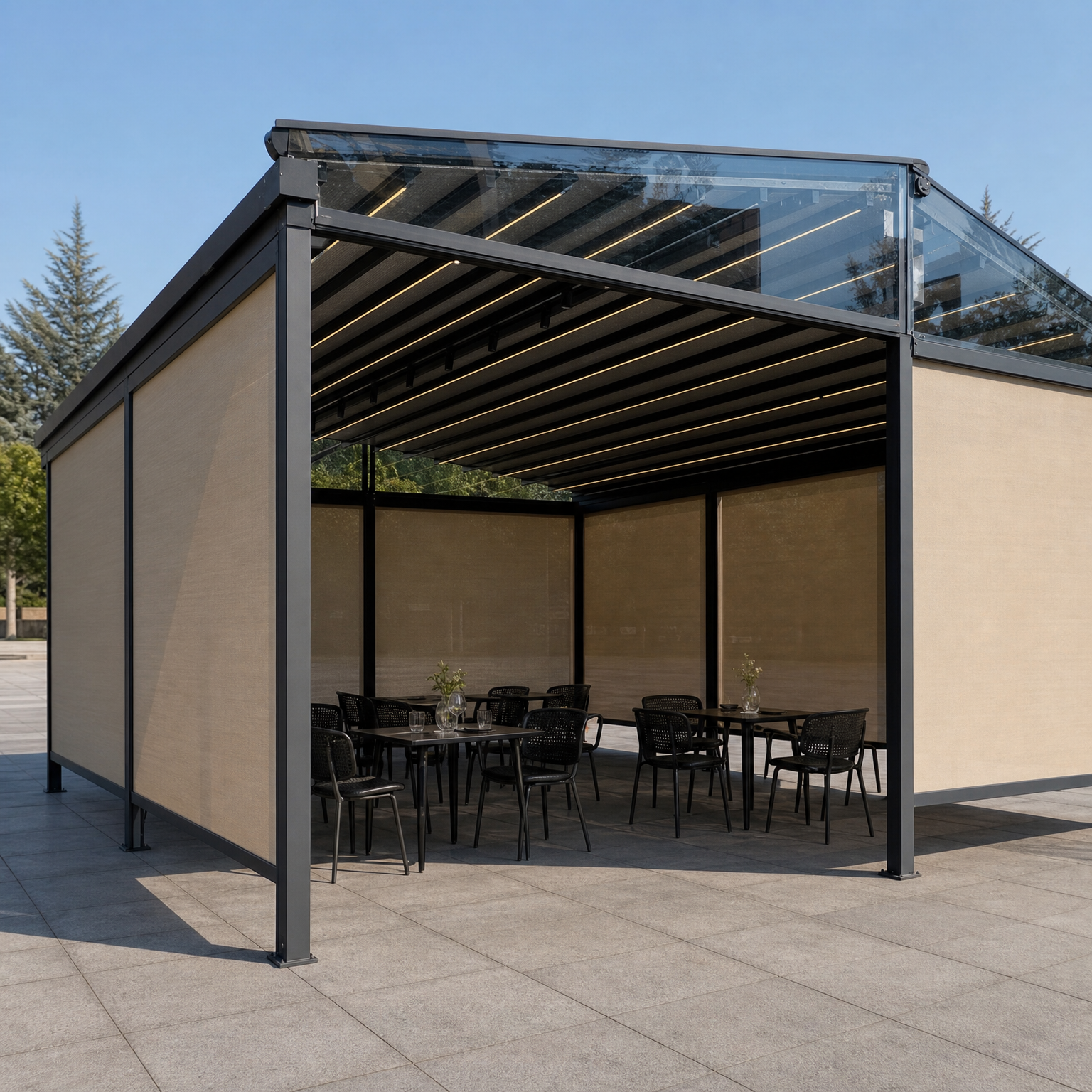

Pergola
Turn roofed structures into more adaptable rooms
Use motorized side screens to adjust exposure around freestanding outdoor structures.

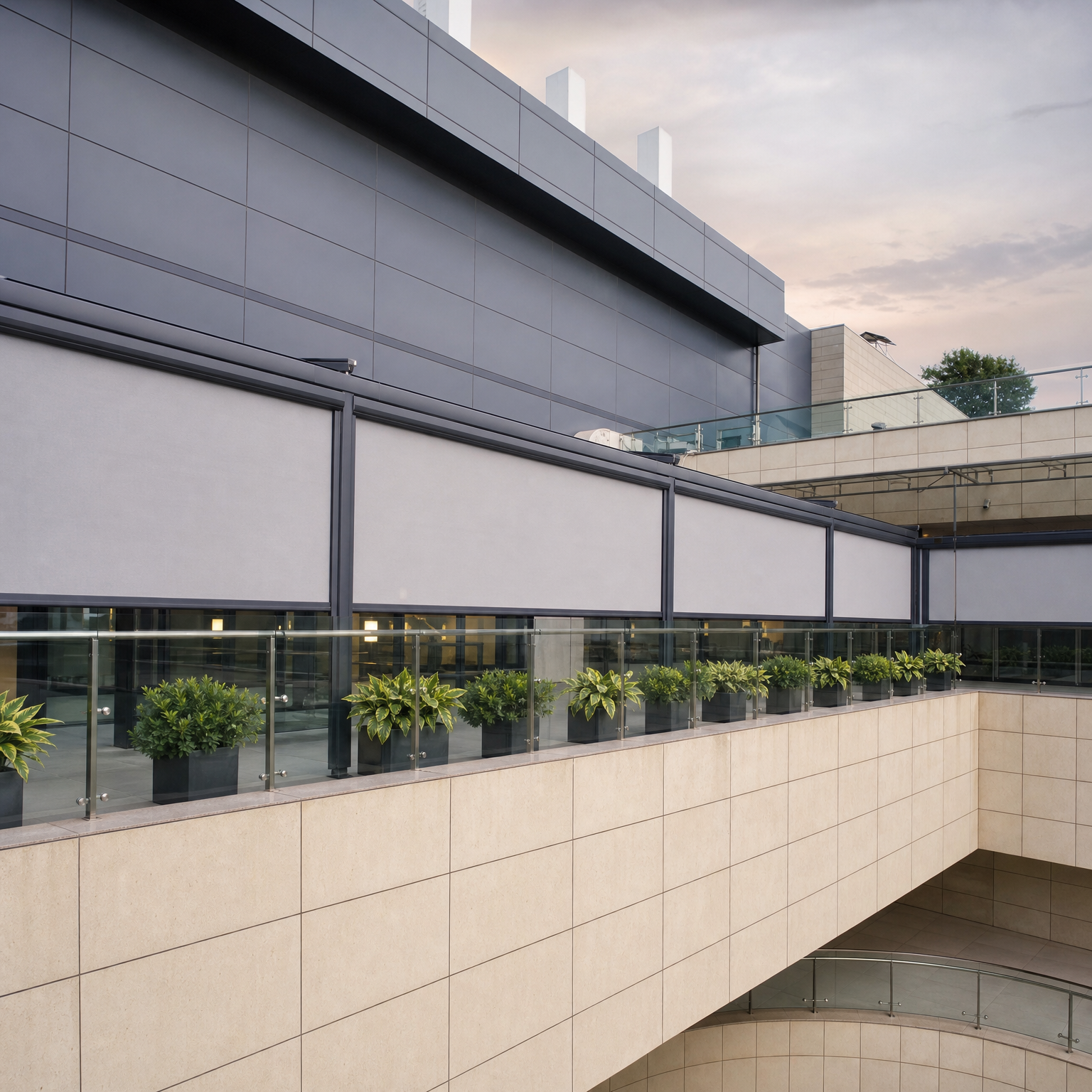

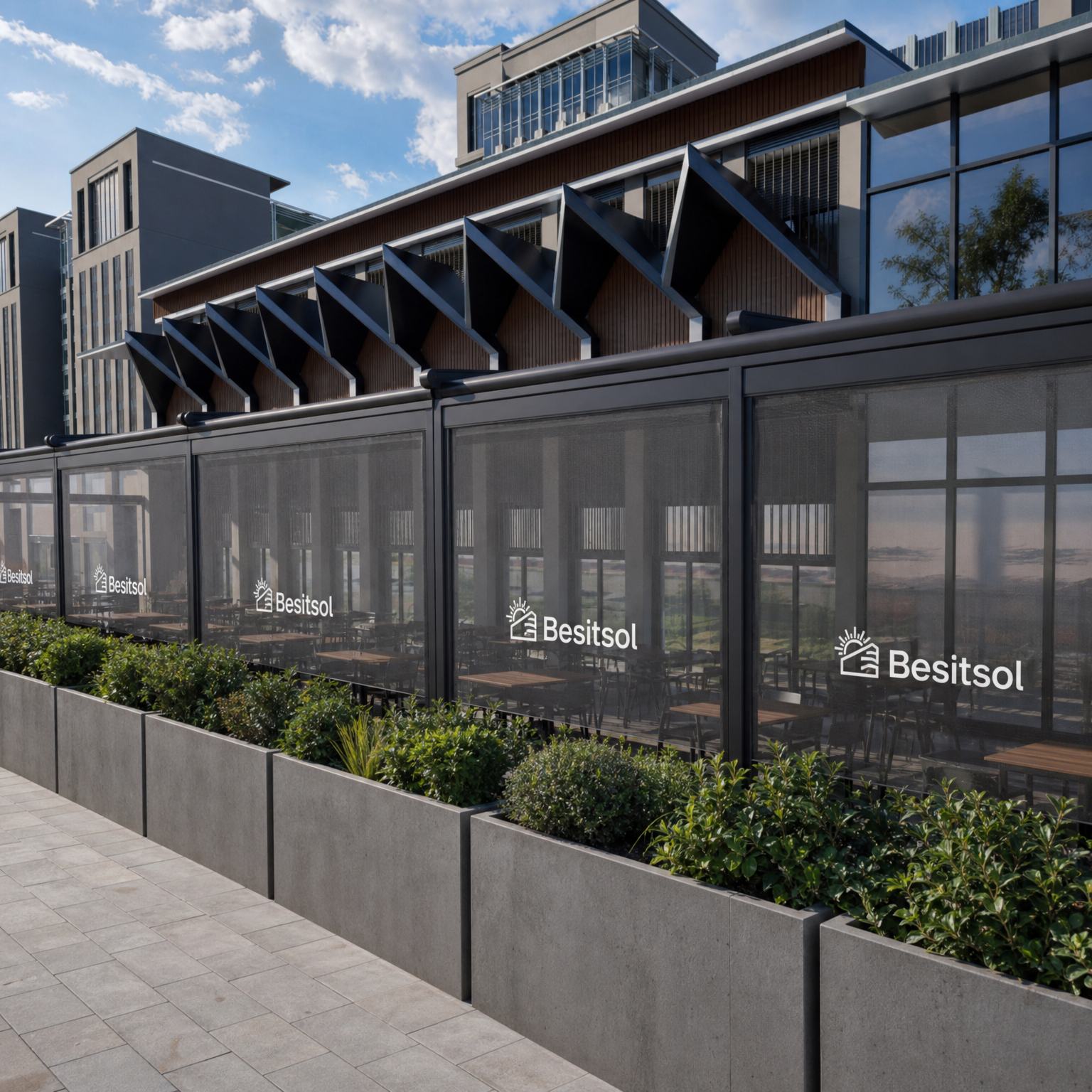

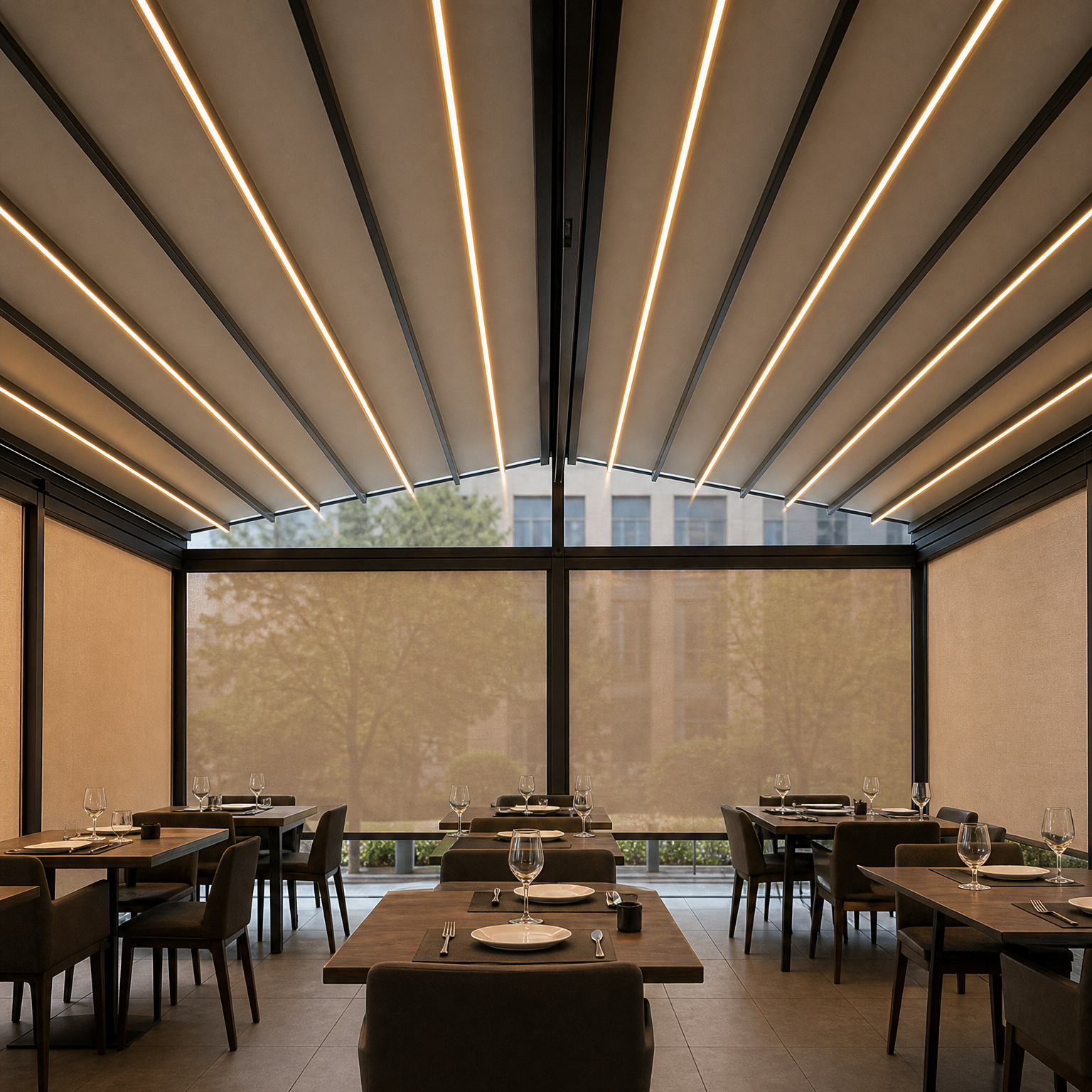

Hospitality
Support outdoor seating through changing conditions
Create a more comfortable perimeter around restaurants, hotels and terrace projects.
Product essentials
Choose the system around the opening.
Two cassette sizes support different opening ranges, while fabric, motor, finish and mounting are selected around the project. Final production dimensions remain subject to site review.
- Wind resistance
- Up to 123 mph; final performance depends on size and installation
- Motor
- 20 Nm quiet tubular motor with remote-control options
- Warranty & colorfastness
- Motor warranty: 2 years; fabric colorfastness statement: 10 years
- Frame
- 6063-T5 powder-coated aluminum
- Guided components
- Aluminum side guides with reinforced bottom rail
- 108 mm cassette
- Width 0.7-4 m; maximum height 3 m
- 130 mm cassette
- Width 0.7-6 m; maximum height 5.6 m
- Fabric choices
- Solar screen, 3%/5% openness, blackout, clear TPU and imported PES
- 5% screen reference
- Domestic: 25% fiberglass / 75% PVC, 0.63 mm, 500 g/m²; imported: 19% PES / 81% PVC, 0.69 mm, 500 g/m²
- Mounting
- Inside, outside, column-supported or multi-bay review
- Frame colors
- Pearl White, Elephant Gray and Coffee; custom Star Coffee, Wood-Grain Brown and Maple Leaf Gold
- Applications
- Balcony, patio, pergola, restaurant and commercial terrace
Prepare for project review
Three details move the quote forward.

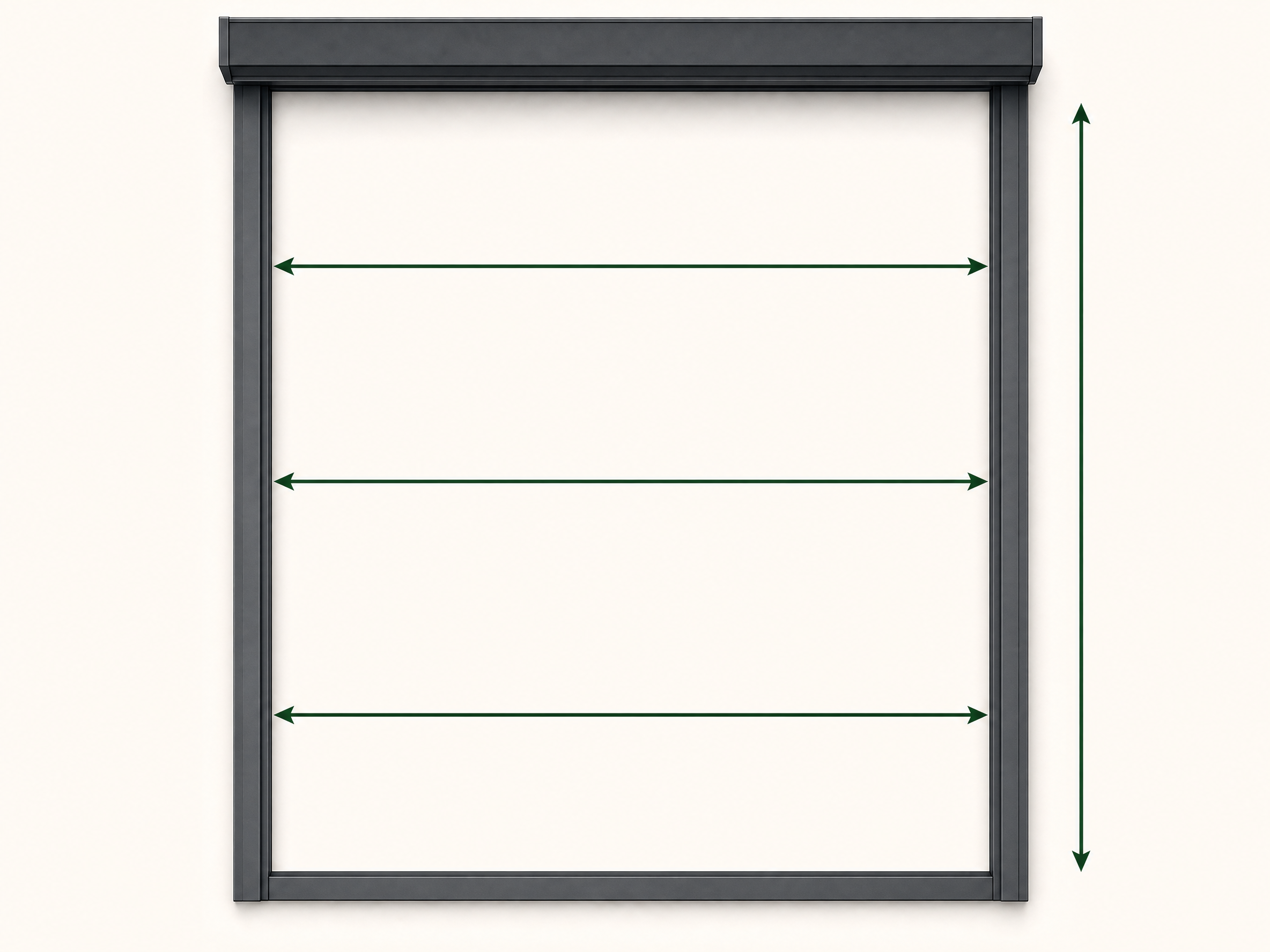

- 01Estimate the opening
Share approximate width and height. Final production dimensions are reviewed later.
- 02Show the fixing surface
A clear site photo helps identify inside, outside or structural mounting conditions.
- 03Confirm use and destination
Tell us where the screen will be used, the quantity and delivery location.
Plan with fewer unknowns
Before requesting your windproof roller shade
How is this different from a conventional outdoor roller shade?
A conventional shade may hang with unsupported side edges. This system guides both fabric edges inside vertical channels for a more controlled enclosure.
Does every size achieve 123 mph wind resistance?
123 mph is the stated maximum wind-resistance level. Finished size, cassette selection, fixing surface, mounting method and installation quality affect the final result, so the project configuration must be reviewed before production.
Do I need final measurements before contacting you?
No. Approximate width and height are enough to begin. A site photo and mounting-surface description help BESITSOL identify the next measurements required.
Can the screen be installed inside or outside the opening?
Both approaches may be possible. The correct direction depends on available clearance, the fixing surface and access for installation.
How do I choose a fabric?
For higher privacy, start with 5% openness or blackout fabric. A 10% openness screen suits general daily use, while 30% openness is recommended for windy or high-rise locations. Clear TPU provides a transparent option. Final selection is confirmed for the project.
What warranty applies?
The motor carries a 2-year warranty. The 10-year fabric colorfastness statement describes expected color retention and is not a fabric warranty.
What information is needed for a quotation?
Start with the approximate opening size, quantity, application and delivery destination. Mounting details and site photos can follow during project review.
What happens after I submit the project details?
The project team reviews the opening, intended use and installation conditions, then confirms what additional dimensions or selections are needed before preparing the quotation.
Start with the information you have
Request a project quote without final drawings.
Approximate dimensions, intended use and delivery destination are enough to begin. Additional mounting and finish details can be added now or confirmed with the project team later.
- 01Share the opening size
- 02Confirm the mounting surface
- 03Receive a project-specific review
